Last updated: November 1st, 2021

Written by: Ariel silver

Analyzing, detecting, and preventing modern day techniques that malwares deploy to bypass security tools and professionals.

Introduction

Today’s adversaries and attackers are no long focused simply on doing the maximum possible damage; they’re looking to remain undetected as long as possible. Malware authors go to great lengths to research new or overlooked mechanisms that let them blend with day-to-day machine operations. These activities (also known as “defense evasion techniques”) seek to help malwares bypass defensive tools’ detection.

Surprisingly, most of these techniques don’t involve malicious code, but rather use Microsoft distributed files and objects. These strategies, known as “living of the land”, use legitimate mechanisms for malicious purposes.

Luckily for us, Cynet 360 monitors evasion technique action points and add a layer of detection mechanisms to its robust knowledge base.

In the scope of this article, we will cover in detail few interesting and powerful evasion techniques that Cynet’s CyOps team have faced lately.

Disclaimer

In the examples below, you will see several videos of simulated attack scenarios that produce an alert. In some of these scenarios the attack was successfully completed even though an alert was generated.

It’s important to note that for these simulations I have disabled Cynet’s prevention capabilities and left only detections enabled. You should not attempt this in any shape or form. This should only be done in a lab isolated from the corporate network. If the prevention mechanisms are enabled, none of the scenarios could be successful.

Breaking The Chains

Most next-gen XDR agents continuously examine process actions and process trees to spot any suspicious behavior. Let’s look at a common example of a suspicious process tree: Excel document initiates a mshta.exe instance. This behavior indicates malicious behavior 90% of the time and hopefully triggers an alert with any EDR system.

To break these process trees and avoid triggering predefined “child process” rules, attackers will add another legitimate process in the middle to proxy the execution of the child process and break the process chain.

A screenshot of a computer Description automatically generated with low confidence

One of the most powerful executables for this job is Rundll32.exe.
Per Microsoft, the original use of Rundll32.exe is that it “Loads and runs 32-bit dynamic-link libraries”, but in the Cyber community this executable has become so much more.
With the use of DLL’s shell32.dll, Rundll32.exe can proxy the execution of almost everything.

1) Rundll32.exe executes JavaScript code.

A screenshot of a computer Description automatically generated with medium confidence

In this scenario, the attacker tried to use Rundll32.exe to proxy the execution of JS code.

This detection is unpassable, as it doesn’t analyze the JavaScript code to determine the legitimacy of this behavior, but examines the process behavior.
As indicated before: “Rundll32 Loads and runs 32-bit dynamic-link libraries” so no JavaScript execution should be legitimate.

2) Rundll32.exe proxies shell commands.

In this scenario, the attacker tried to abuse Rundll32.exe to proxy the execution of shell commands using CMD.
The use of shelldll32.dll with different arguments is something common with Rundll32.exe.

Once again this detection recognizes the process behavior as malicious and doesn’t analyze the shell command.

Dot Com Bubble

The next scenarios relate to COM object hijacking. These are sophisticated techniques that provide the attacker two crucial elements: security tools evasion and persistence.

Admittedly, comparing this to the Dot Com crash might be exaggerating – it did take MSFT shares 17 years to bounce back – but this subject has certainly created massive headaches for Microsoft developers and security teams.

Before diving into the attacks and detections, we must establish a technical baseline:

CLSID – a serial number that represents a unique ID for any application component in Windows
CLSID’s location and structure:
You can find CLSID under the following registry keys:
HKEY_CURRENT_USER\Software\Classes\CLSID
HKEY_LOCAL_MACHINE\Software\Classes\CLSID
HKEY_CLASSES_ROOT\CLSID\

HKEY_CURRENT_USER + HKEY_LOCAL_MACHINE CLSID’s form the HKEY_CLASSES_ROOT which is the one
that the machine actually queries most of the time.
if there is a conflict between the 2 Hives CLSID’s, HKEY_CURRENT_USER Overrides HKEY_LOCAL_MACHINE

COM objects – components that allow inter-process communication and code reuse

COM object keys – Sub keys of the CLSID’s. depends on the COM object key, but most of them point to
files or other CLSID’s

1) Abusing “TreatAs” subkey

With this technique, we are hijacking a COM object.
We do it by searching for CLSIDs that known softwares call but are unable to find as it doesn’t exist. This is when we create this CLSID with any values and data we want, so next time the software calls the CLSID our hijacked COM object will be “executed”.

I used Procmon to find a vulnerable COM object like the ones described above which operate everyday applications and see which one will pay dividends.
Graphical user interface, text, email Description automatically generated
As you see I’m searching for keys under the HKEY_CURRENT_USER hive, that end with “InProcServer32”.

“InProcServer32” – A subkey that indicates where a COM library is located on the disk, defines the threading model, and points to a dll.

Once we finish the initial search, we need to find an instance in which the software tried to access an InProceServer32 subkey of an inexistent CLSID.
Using Procmon we can find it when searching for a result that equals “NAME NOT FOUND”.

The COM object I found was referred to by WinWord.exe but didn’t exist. Once again, a perfect candidate for a hijack.

I used the Registry editor to create this registry key and under it created two subkeys: “InProcServer32” and “TreatAs”
Graphical user interface, application, Word Description automatically generated

“TreatAs” – Subkey of a CLSID. “TreatAs” contains a value named “(Default)” which can contain a string of another CLSID number and spawn it as well when its own CLSID is called.
Usually, the additional CLSID that is called by “TreatAs” will have a “InProcServer32” subkey that points to a malicious DLL. For example:
Graphical user interface, text, application Description automatically generated

Attackers love this mechanism because it lets them create the following flow:
Diagram Description automatically generated

Cynet goes one step further to prevent this attack.
Instead of monitoring all the “TreatAs” subkeys and waiting for them to call an unregistered CLSID, Cynet just detects and prevents the adversary from modifying the data of “(Default)” value under the “TreatAs” subkey.

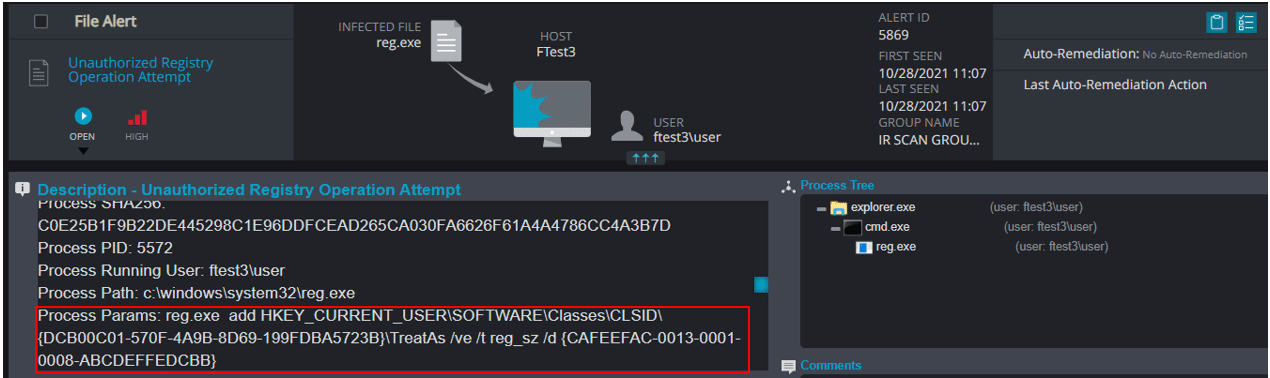

As shown in the video and the alert below, Cynet immediately detects the attempt to modify a “TreatAs” subkey of a registered CLSID.

A screenshot of a computer Description automatically generated with medium confidence

2) Abusing “ScriptletURL” subkey

If you thought “TreatAs” is dangerous, the next sub-CLSID will look almost too powerful to be true.
The steps to find and hijack the missing CLSID are identical to the “TreatAs” flow.
For that reason, I’ve decided to further abuse the same CLSID as before: {DCB00C01-570F-4A9B-8D69-199FDBA5723B}. This time we are adding the “ScriptletURL” sub key.

This COM object allows software to download scripts from a remote URL and execute them without the script file ever touching the disk. Similar to Regsvr32.exe (which you will see in the following technique), “ScriptletURL” uses Scrobj.dll for these actions.

As shown in the video above, this time I attempted to complete the scenario using the CMD.
This was done to assure our customers that these types of operations trigger an alert, regardless of the method used.

Once again Cynet detects and prevents the attempt to modify the registered CLSID’s “ScriptletURL” sub key.
In this case the operation was detected and not prevented. Therefore, the next time WinWord.exe calls this COM object, it will download a PowerSploit script from GitHub and execute it.

A screenshot of a computer Description automatically generated with medium confidence

Qakbot’s BFF

The CyOps team has encountered Qakbot multiple times in recent months. Qakbot malware started as a banking trojan in 2007. Its goal was to retrieve banking credentials and financial information. In later stages, it can be used for a much wider range of activities, including spreading a ransomware attack.

Qakbot’s attack flow first stages:
Diagram Description automatically generated

The important thing to notice in the above methodology is the use of Regsvr32.exe. Regsvr32.exe is a well-known and widely used system executable that has some documented functionalities regarding DLLs. Its documented capabilities essentially add up to initiating DLLs, or in Microsoft’s words, it “registers .dll files as command components in the registry.”

So how can we monitor and prevent the use of Regsvr32.exe without causing BSOD to our machine? First, we don’t prevent any “clean” use of Regsvr32 such as executing a proper DLL file. Even so, we can monitor
Well we won’t prevent any “clean” use of Regsvr32.exe which means, executing a proper DLL file. Nevertheless, we can monitor and prevent the following Regsvr32.exe abusing techniques.

1) Masquerading DLLs

One commonly used technique is to disguise malicious DLLs as different file types with various extensions. For example, an attacker can download a malicious DLL, change its extension to .jpg and use Regsvr32.exe to execute it as a DLL. Not many security tool monitor calls to a picture file.

In above detection, Cynet looks at each and every instance of regsvr32.exe and the extension of every file being executed by regsvr32.exe.
If the file extension isn’t .dll , Cynet understands that it’s looking at a masquerading technique and prevents it.
A screenshot of a computer Description automatically generated with medium confidence

2) Squiblydoo

Squiblydoo is the term name for methods using Scrobj.dll for LOLBin attacks. Scrobj.dll can load a COM scriptlet directly from the internet and execute it.

As promised, in the ScriptURL explanation paragraph, I will break down another overpowered evasion technique to conduct fileless attacks uses Scrobj.dll.

The command above attempts to use abuse Regsvr32.exe to proxy the execution of a remote scriptlet.
The Squiblydoo methods initiate Fileless attacks which receive malicious strings on HTTP and HTTPS and execute them right on the RAM without ever touching the disk.
Cynet will alert and prevent this type of malicious behavior

A screenshot of a computer Description automatically generated with medium confidence

Sorry… I don’t speak base64

This method is used to bypass the not-so-good and very obsolete antivirus agents. To understand how it works, it’s critical to first understand how AV categorizes files as malicious. AVs store a massive database of signatures that are searched against files. If a signature is matched, the file is labelled malicious. These signatures are built from combinations of strings and hexes that were found in malwares but are unique enough to not generate many false positives. To provide an example we’re looking at Yara rules. These operate on the same concept as AV platforms, but shouldn’t be mistaken for AV.

First I dumped them in a hex editor to search for any unique strings.

A picture containing text Description automatically generated

Then I extracted the unique strings and created the following Yara rule:
Text, letter Description automatically generated

This is a simple Yara rule created after analyzing a Trojan.

We found three unique strings and created a Yara signature that looks for executables containing one of these strings or a random file containing all three of the strings, Case-insensitive. Once again, this is not an AV signature, but just an example of the concept.

1) Certutil – decode

Let’s run a scenario. After compromising the system with a malicious macro, the attacker wants to transfer additional tools into the system. The adversary knows the company has a Firewall and IDS with a built-in AV, which means they need to bypass it. The attacker can convert their malware to base 64, and once inside the system convert it back into normal and execute it.

The malware can be decoded by a well-known system utility called Certutil. Certutil is a LOLBin attackers constantly use as it’s signed and has many capabilities.
Certutil -decode, is a way to decode a base64 file back to its functional form.

Luckily, Cynet monitors Certutil.exe and alerts on this behavior and many more.

A screenshot of a computer Description automatically generated with medium confidence

Just to prove that Antiviruses can’t handle an easy bypass technique like this, I took a well-known ransomware variant called “WannaCry” and uploaded it twice to VirusTotal.
First is pre-encoding:
Graphical user interface, text, application, email Description automatically generated

Second is post-encoding:
Graphical user interface, text, application, email Description automatically generated

More than 66% of the Antiviruses couldn’t keep up with such a simple technique.

COVID Vaccine

Injection is one of the scariest phrases for any security analyst. Analyzing process injections requires ignoring the process tree and the vast majority of security tools to focus instead on processes handled and API functions.

Let’s take a look at Cobalt Strike. This malware started off as a red-team tool but has become a go-to platform for many attackers. Cobalt Strike comes with a user-friendly GUI that allows adversaries to understand, document, and further damage machines they’ve exploited. Additionally, it comes pre-loaded with several post-exploitation modules that can be initiated with a simple command.

Finally, there are attackers that use Cobalt Strike modules throughout the attack chain – from vulnerability scans to malware delivery or data exfiltration. Even though Cobalt Strike has endless attacking capabilities, the most commonly noted is its capability for process injection. I have simulated a Cobalt attack ending with an injection in our labs, to see what API functions were used by the malicious file.

First we created a .exe file called “artifact.exe”, that we will plant on the target machine:
Graphical user interface, text, application Description automatically generated

When executed by the target, the malicious file will create a reverse shell between the target and the C2:
Graphical user interface, application Description automatically generated

Lastly used the cobalt injection command while specifying the PID of notepad.exe.

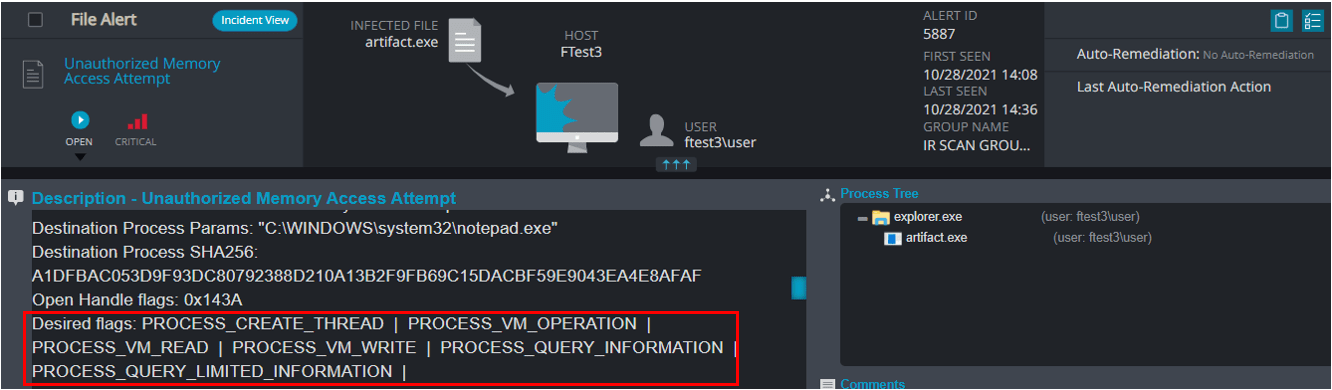

This generated the following alert on the target machine:

A screenshot of a computer Description automatically generated with medium confidence

By looking at the requested flags, we see that the artifact.exe tried to create a remote thread on notepad.exe and write to its memory in order to execute malicious code on our behalf.
Cynet constantly monitors the API used between processes to find any anomalies that don’t align with the process permissions

Conclusion

The evidence I’ve laid out in this article is only the tip of the iceberg when it comes to security tool evasion techniques. This is an endless game of cat and mouse, with both sides constantly evolving. We’ve broken down some common adversary techniques to remain undetected, and how Cynet can detect them. The Cynet research team is continuously search for, analyzing, and building mechanisms to detect these methods and prevent them. Additionally, the CyOps team is constantly learning about new techniques and things to look out for when monitoring our customers’ networks, whether its analyzing suspicious files or dealing with incident response.
